PSC Pro GEN II Tiled Shower Flange with Clamping Flange Adapter Seal
PSC Pro Gen II Generation 2 Drain Clamping Drain Adapter Flange with 5-1/4" Universal Seal for Tile and Stone Showers -
- Modern drain system that adapts to existing rubber liner clamp style flange
- Installs with high quality modified thin-set mortar for stronger bond
- Multiple drain grate cover colors choices, friction fit design and integrated hair trap

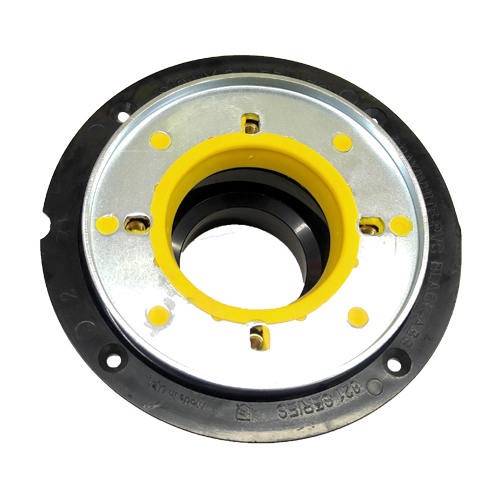

- Universal seal adapts to ABS or PVC clamping drain flanges
- Complete kit including corners and seals - just add sloped floor and membrane for complete shower
PSC Pro GEN II Low Profile (LP) Drain Kit with Universal Seal Adapter for Clamping Drains
- Includes the drain components for a fully-bonded water-tight assembly for tiled showers. Additional waterproof membrane will be needed

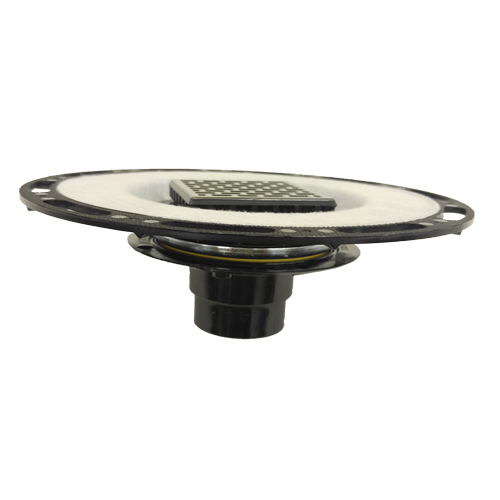

- Special version of Gen 2 flange with 5-1/4" diameter adapter seal allows connection to existing clamping style drain flange originally designed for rubber/pvc liners
- Install high-performance modern waterproofing by adapting to existing flange rather than tearing up concrete flooring to remove
- Extremely reliable yet easy to construct
- Can be used for wide variety of installations - small and large showers, center and offset configurations, standard or steam
- Drain flange allows the flexibility of multiple adjustment to riser assembly at end of install
- Riser-Grate assembly includes a construction plug and features locking grout and mortar grooves to ensure the strongest and most reliable final installation
- Riser threads into super-strong locking ring to provide ultimate strength and security while still allowing adjust-ability
- Numerous grate color and style choices available that offer easy removal/reinsertion so that integrated hair trap can be frequently and quickly serviced with no small screws to lose
- PSC Pro riser is fully compatible with all Ebbe grates
- Installation can use recommended high-quality modified thin-set mortar readily available from multiple manufacturers for better adhesion and elimination of failure possibilities
- Install glass and other high-density finished products that require modified thin-set mortar
- Installation methods very similar but easier than competing kits - little to no retraining required for contractors. Design improvements implemented with contractor feedback
- System can work with many brands of polyethylene waterproofing membranes
- Components are backed by an industry standard 10-year warranty. Grate has lifetime warranty
Kit Includes:

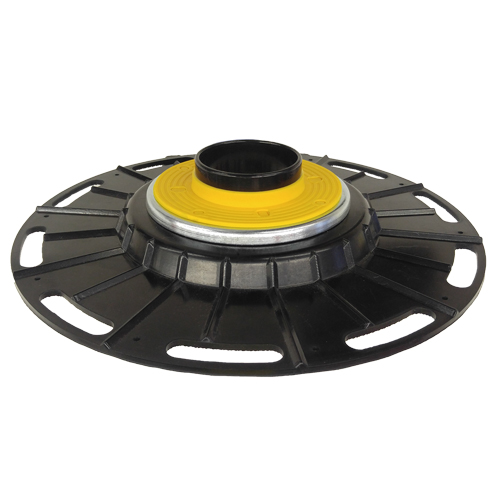

- 1 PSC Pro Gen II Low Profile ABS drain flange with universal seal adapter for ABS or PVC clamping flanges
- 1 PSC Pro Grate Cover. Choose NO grate cover to purchase a designer or other grate separately
- 1 Grate Puller (Grate is screwless!) and 1 easily accessed integrated hair trap
- 4 Pre-formed inside waterproofing membrane corners for shower floor waterproofing
- 2 Pre-formed outside waterproofing membrane corners for curb or bench to wall transitions
- 1 Mixing valve seal (standard 4-1/2") and 1 universal pipe seal (works for 1/2" or 3/4" pipes)
- 1 Construction plug/cover - protect assembly during construction
What You Will Need to Complete a Shower Installation
- Create a sloped floor around installed drain flange - most likely dry-pack mortar. We have slope guide sticks available to aid this process.
- WP or other waterproof membrane for sloped shower floor and surrounding walls along with 5" WP band for edges (or you can cut your own from large sheet membrane
- Tools, modified/fortified thin-set mortar, tile and grout
Available Grate Options
- Grate size: 3 3/4" x 3 3/4"
- Features screw-less design and accommodates integrated hair trap
- Comes with grate puller to easily lift grate for hair trap maintenance
Standard Grates
Satin NickelChromeCopperBlackMatte BlackBrushed NickelOil Rubbed BronzeAntique BrassTile-able TopStainless Steel Designer Grates
(To order your kit with one of the stainless steel grates, choose "NO GRATE" on this kit and add the designer grate of your choice to cart separately)
