Schluter Systems Kerdi Shower Drain Kit - 4 Inch Grate

Flat Shipping*
Kerdi Shower Drain Kit - 4 Inch Grate by Schluter Systems

$120.69 - $301.00

Schluter Systems Kerdi Shower Drain Kit ABS, PVC or Stainless Steel Flange, 4 Inch Grate

  • 4" (100 mm) square, fully adjustable grate
  • Accommodates 1/4" (6 mm) to 1-1/4" (32 mm) tile thicknesses
  • ABS, PVC or stainless steel flange, 2" (50mm) drain outlet
  • Kerdi Kit includes 4 inside corners & 2 Outside corners
  • MV Seal or Pipe seal not included with this kit

Schluter KERDI-DRAIN, ABS, PVC or Stainless Steel Flange, 4" Square Grate, 2" Drain Outlet

Function

Drain Install
  • Schluter-KERDI-DRAIN is a floor drain specifically designed to allow connections to Schluter-KERDI or other load-bearing, bonded waterproof membranes, typically in shower applications
  • Bonded waterproof membranes represent the current state of technology and are increasingly used for ceramic tile and natural stone coverings
  • Schluter-KERDI is adhered to the drain's large, trapezoid-perforated bonding flange, which is covered with a fleece webbing, to form a waterproof connection at the top of the drain assembly
  • KERDI-DRAIN features a square, fully adjustable grate to accommodate 1/4" (6 mm) to 1-1/4" (32 mm) tile thicknesses
  • The grate assembly allows lateral and tilt adjustment as well
  • KERDI-DRAIN with a 4" grate is designed to simply integrate with standard 2" (51 mm) drain pipes, while the 6" grate version is suitable for 2" and 3" drain outlets.

Available Grates

4" Grate Options

Stainless Steel Anodized Aluminum
Kerdi Shower Drain Stainless Steel

Stainless steel (E)

Kerdi Shower Drain Brushed Brass

Oil-rubbed bronze (EOB)

Kerdi Shower Drain Brushed Nickel

Brushed Nickel (ATGB)

Kerdi Shower Drain Brushed Copper / Bronze

Brushed copper/bronze (AKGB)

Kerdi Shower Drain Brushed Brass

Brushed brass (AMGB)

6" Grate Options

Stainless Steel
Kerdi Shower Drain Stainless Steel

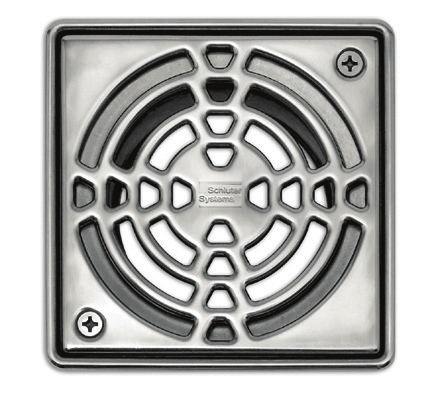

Stainless steel square (6E)

Kerdi Shower Drain Brushed Brass

Stainless steel round (6RE)
