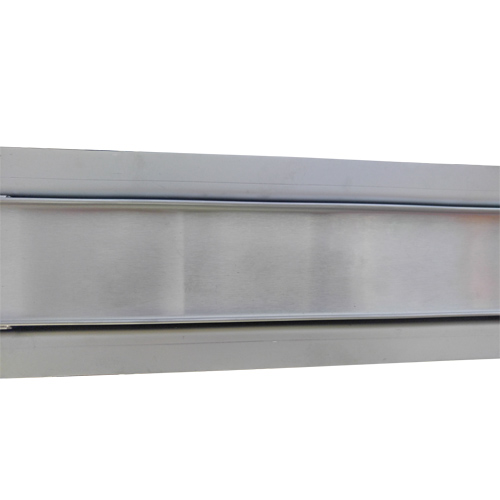

PSC Pro Linear Trench Drain

PSC Pro Linear Trench Drain  by Pro-Source Center

$203.00 - $525.23

PSC Pro Linear Drains

PSC Linear Drains
  • Heavy Duty Stainless Steel Construction
  • Ideal for use with PSC WP high-performance surface waterproofing
  • Easy grate height adjustment

PSC Linear Drain Installation

PSC Shower Stainless Steel Linear Drain Floor Trench Drain Only

  • Heavy Duty Stainless Steel Construction
  • Much heavier and sturdier than competition
  • Nearly impossible to rack, bend, damage or cause membrane debonding

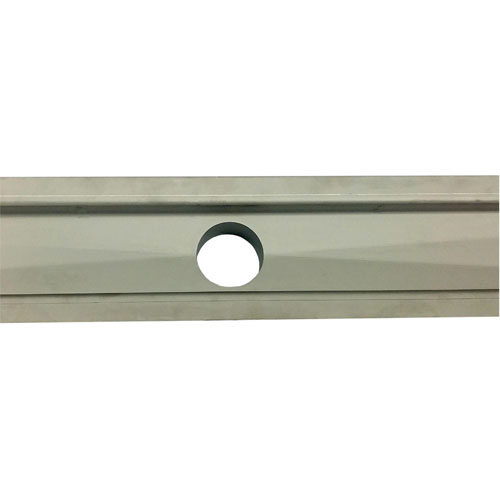

  • 3 Dimensional Slope built into channel body
  • Easily integrated into polystyrene or mud-packed sloped floors
  • Ideal for use with PSC WP high-performance surface waterproofing
  • Easy grate height adjustment

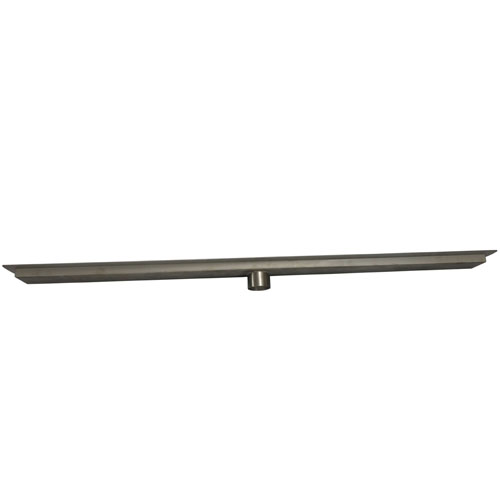

  • Selected Length Stainless Steel Drain Body with Centered Bottom 2" Outlet
  • Selected Pattern or Type (standard options are brushed stainless steel) Grate Cover with Adjustable Height Feet
  • PSC WP Waterproof Flashing with Adhesive for Transitioning to WP Shower Membrane
  • Serviceable and replaceable hair trap

Grate Style Choices (Polished versions also available but not shown):



Linear Drain Instalation Step 11. Mark Drain Location and Cut
Linear Drain instalation Step 22. Set Linear Drain Drain in Palce
Dry Fit Shower Pan Step 33. Dry Fit Shower Pan
install Shower Shower Pan Step 44. Install Shower Pan
Install Inside Shower Curb Step 55. Install Curb if Desired
Install Drain Waterproofing Drain Flange Step 66. Install Drain Flange
Install Inside Waterproof corner shower Step 77. Set Inside Corners
Install Waterproof shower Band Step88. Install Transition Strip
Install Wall Waterproofing shower membrane Step 99. Install Wall Waterproofing Membrane
Install Drain Waterproofing Flange Step 1010. Install Shower Floor Waterproofing Membrane
Cut Out Drain Flange Waterproof Membrane 1111. Cut Out Drain Flange
Clean Out Drain Step 1212. Clean Out Drain
Dray Fit Grate cover Step 1313. Dry Fit Grate Cover.
